WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine

  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
  • WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
Сертификация ISO
Количество мин заказа 1
Цена 53000

Свяжитесь я бесплатно образцы и талоны.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Максимальная резкая сила 5000kN Длина лезвия 1400/1600 мм
Production Rate 6-9t/H Власть 90 кВт
Shearing Hydro-Cylinder YG450/280 Hydro-Cylinder Quantity 2
Nominal Thrust 4000Knx2 Push Hydro-Cylinder YG320/220
Push Thrust 2000Kn Hydraulic Pressure <22Mpa
Cutting Dimensions 1600/420mm Время стрижки 2-4 раза в минуту
Operating Mode Mechanical Loading, PLC Control Power Specification 415V/3P 50Hz
Основная мощность машины 220 кВт
Выделить

WS-500 Gantry Shear

,

5000kn Max Cutting Force Hydraulic Metal Shear Machine

,

1400/1600mm Blade Length Gantry Shear
Оставьте сообщение
Характер продукции
WS-500 Automatic Hydraulic Metal Shear Machine
WS-500 Horizontal Metal Container Shear
This scrap shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available in the HPM series of horizontal balers with manual belting.
Key Features
  • Horizontal structure allows for manual or conveyor-assisted automatic feeding
  • PLC control with push-button operation for safe and reliable performance
  • High output capacity for efficient scrap processing
Technical Specifications
Parameter Content Remark
Shearing Hydro-Cylinder Model: YG450/280
Quantity: 2
Nominal Thrust: 4000Knx2
Push Hydro-Cylinder Model: YG320/220
Quantity: 1
Nominal Thrust: 2000Kn
Hydraulic System Working Pressure <22Mpa
Cutting Length/Height 1600/420mm
Shearing Times 2-4 Times/Min Empty load Load operation
Operating Mode Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control)
Power Specification 415V/3P 50Hz (According to your requirement)
Main Machine Power 220Kw (not including system of cooling, heating and filtering)
Oil Tank Size 4000X2000X800 (6000L)
Motor Model: Y2-250M-4
Quantity: 4
Rated Speed: 1470 Rpm
Rated Power: 55 Kw
Pump Model: A4V250
Quantity: 4
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
Other Available Models
Model Max Cutting Force(KN) Blade Length(mm) Shear Height(mm) Production Rate(t/h) Power(KW)
WS-630 6300 1400/1600 300/420 8-15 110
WS-800 8000 1600 420/500 12-18 220
WS-1000 10000 1600/2100 420/500 15-25 360

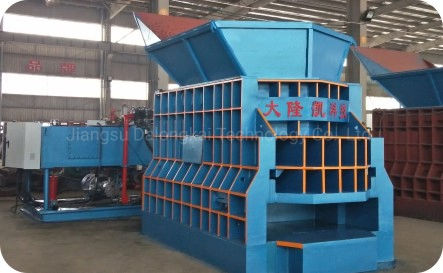

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine 0
About Jiangsu Dalongkai Technology Co., Ltd.

We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears (including container shears), hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment.

Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry. We export worldwide to Russia, India, South Africa, Southeast Asia, and other markets.

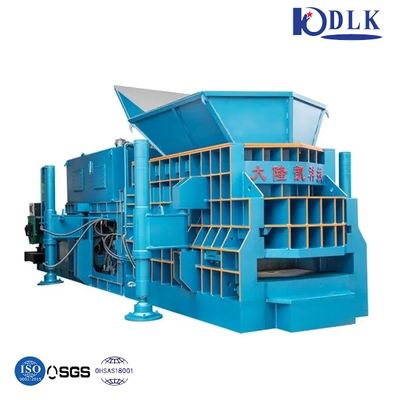

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine 1
Finished Products

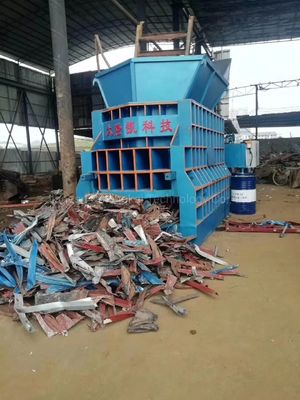

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine 2
Packaging

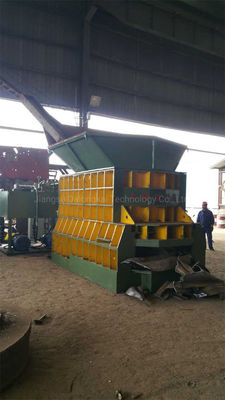

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine 3
Frequently Asked Questions
Q1: How can I get after-service support?
A: We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
A: We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
A: With 20 years of professional design experience, we offer suitable suggestions and competitive pricing:
  • Third-party assessed with national patents and CE, ISO certifications
  • Factory inspections welcome - conveniently located near Shanghai Pudong airport
  • Specialized in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
A: We supply only high-quality machines and offer the best factory price based on superior products and service.
