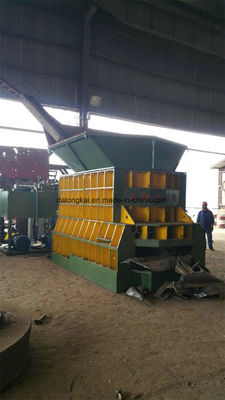

WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
Свяжитесь я бесплатно образцы и талоны.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Максимальная резкая сила | 1000тон | Blade Length | 1600/2100mm |
|---|---|---|---|
| Производство | 15-25т/ч | Власть | 360kW |
| Shearing Cylinder Model | YG500/380 | Shearing Cylinder Quantity | 2 |
| Shearing Cylinder Thrust | 5000Knx2 | Push Cylinder Model | YG340/220 |
| Push Cylinder Quantity | 1 | Push Cylinder Thrust | 2500Kn |
| Hydraulic Pressure | <22Mpa | Высота резки | 420 мм |
| Время стрижки | 2-3times/min | Oil Tank Size | 10000X2000X750 |
| Мощность двигателя | 90 кВт | ||
| Выделить | 15-25t/H Production Rate Container Shear,360kw Power Gantry Shear,Horizontal Structure Scrap Shear |
||
Характер продукции

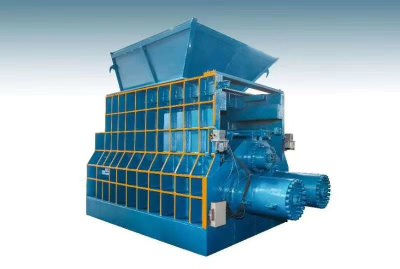

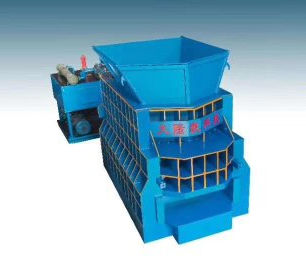

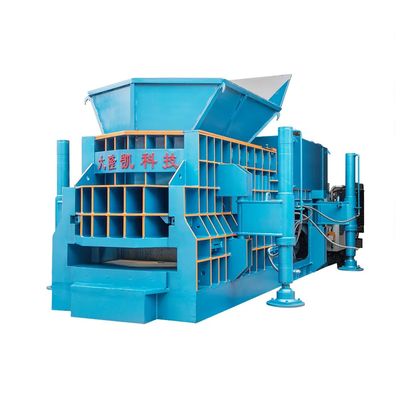

WS-1000 Container Shear
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With advanced technology, modern manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers and shears including container shears, metal balers, garbage compactors, briquetting presses, and sheet metal shears. Our products are exported worldwide to Russia, India, South Africa, and Southeast Asia.
Our machines are designed for scrapyards, steel mills, scrap recycling processing, and nonferrous & ferrous smelting industries.
Finished Products
Package
Product Specifications
Applications
The WS-1000 Container Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different requirements.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation for safety and reliability
- High output capacity for efficient processing
| No. | Parameter Name And Content | Remark |
|---|---|---|
| 1 | Shearing Hydro-Cylinder Model: YG500/380 Quantity: 2 Nominal Thrust: 5000Knx2 |
|
| 2 | Push Hydro-Cylinder Model: YG340/220 Quantity: 1 Nominal Thrust: 2500Kn |
|
| 3 | Hydraulic System Working Pressure | <22Mpa |
| 4 | Cutting Length/Height | 1600/420mm |
| 5 | Shearing Times | 2-3Times/Min (Empty load Load operation) |
| 6 | Operating Mode | Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control) |
| 7 | Power Specification | 415V/3P 50Hz (According to your requirement) |
| 8 | Main Machine Power | 360Kw (not including system of cooling, heating and filtering) |
| 9 | Oil Tank Size | 10000X2000X750 |
| 10 | Motor Model: Y2-280M-4 Quantity: 4 Rated Speed: 1470 Rpm Rated Power: 90 Kw |
|
| 11 | Pump Model: A4V250*2 Quantity: 4 (connected pump) Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
Other Models For Container Shear
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
