Y82-63 Hydraulic Vertical Baler Machine 63 Ton Customized Double Column Hydraulic Press for Recycling
Подробная информация о продукте
| Номер модели | Y82-63 | Главная сила цилиндра | 63 тонна |
|---|---|---|---|
| размер пресс-коробки | 1080*750*1500 (мм) | Секция тюков | 1080*750 (мм) |
| Власть | 15 ((KW) | Метод разряжения тюков | Толкание сумки |
| Тип | Двухколонный гидравлический пресс | Производственная мощность | 5 комплектов/месяц |
| Номинальная сила | 630KN/63T | Размер камеры | 1080*750*1500 мм |
| Секция тюков | 1080*750 мм | Власть | 15 кВт |
| Метод разряжения тюков | Общая выручка | Масляный цилиндр тип | Тип накладных расходов |
| кольца запечатывания | Импортирован | ||
| Выделить | 63 Ton Hydraulic Vertical Baler,Customized Cloth Baler Machine,Double Column Hydraulic Press Paper Baler Machine |
||
Характер продукции
Y82-63 Hydraulic Vertical Cloth Baler Machine
Applications
- Primarily used for compressing and baling woven bags, cloth, waste paper, and scrap paper for efficient transportation and storage
- Ideal for compressing and baling wool and wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive system with overhead type oil cylinder, operates without underground foundation
- All oil cylinders utilize imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
| Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|
| Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | - |
| Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW | - |

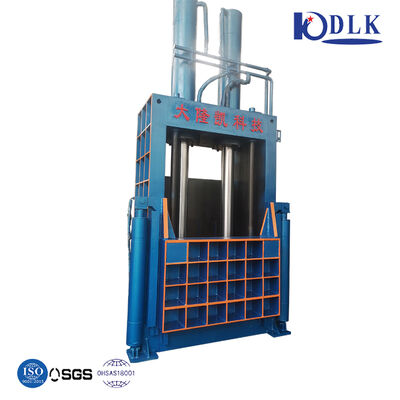

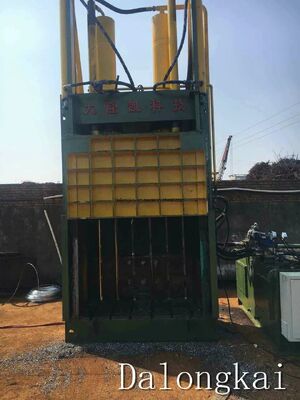

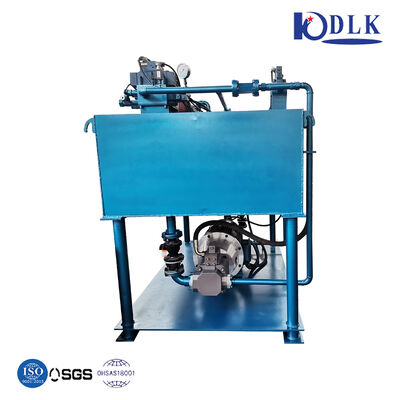

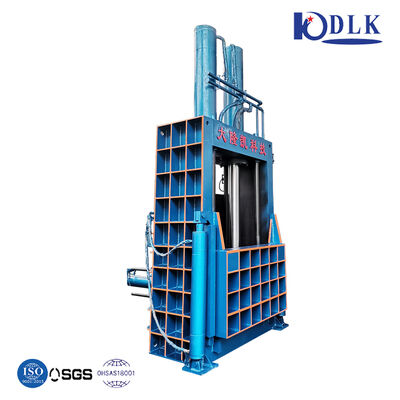

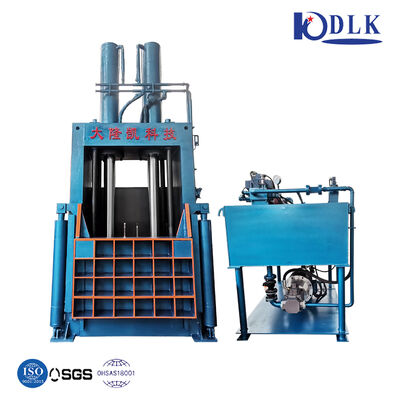

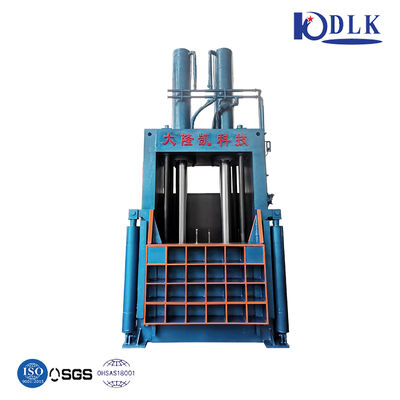

Product Images
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is always available.
Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export accounting for 50-60% of our business.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
